ООО «Хронотоп» на основании документации или образцов заказчика может изготовить широкий ассортимент оснастки для технического обслуживания авиационной техники и компонентов.
Перечень продукции по типам воздушных судов (ВС) и партийным номерам компонентов (p/n),
которую Вы можете заказать у нас:
1. ОСНАСТКА ДЛЯ ОБСЛУЖИВАНИЯ АВИАЦИОННЫХ КОЛЁС И ТОРМОЗОВ:
- Оснастка для обслуживания колёс GOODRICH CORPORATION p/n 3−1659, 3−1678.
- Оснастка для обслуживания тормозов GOODRICH CORPORATION p/n 2−1756 Series.
- Оснастка для обслуживания колёс GOODRICH CORPORATION p/n 3-1596, 3-1546.
- Оснастка для обслуживания тормозов GOODRICH CORPORATION p/n 2-1577 Series.
- Оснастка для обслуживания колёс GOODRICH CORPORATION p/n 3-1559, 3-1674.
- Оснастка для обслуживания тормозов GOODRICH CORPORATION p/n 2-1740 Series.
- Оснастка для обслуживания колёс GOODRICH CORPORATION p/n 3-1619, 3-1666.
- Оснастка для обслуживания тормозов GOODRICH CORPORATION p/n 2-1693 Series.
- Оснастка для обслуживания колёс GOODRICH CORPORATION p/n 3-1650, 3-1661.
- Оснастка для обслуживания тормозов GOODRICH CORPORATION p/n 2-1711 Series.

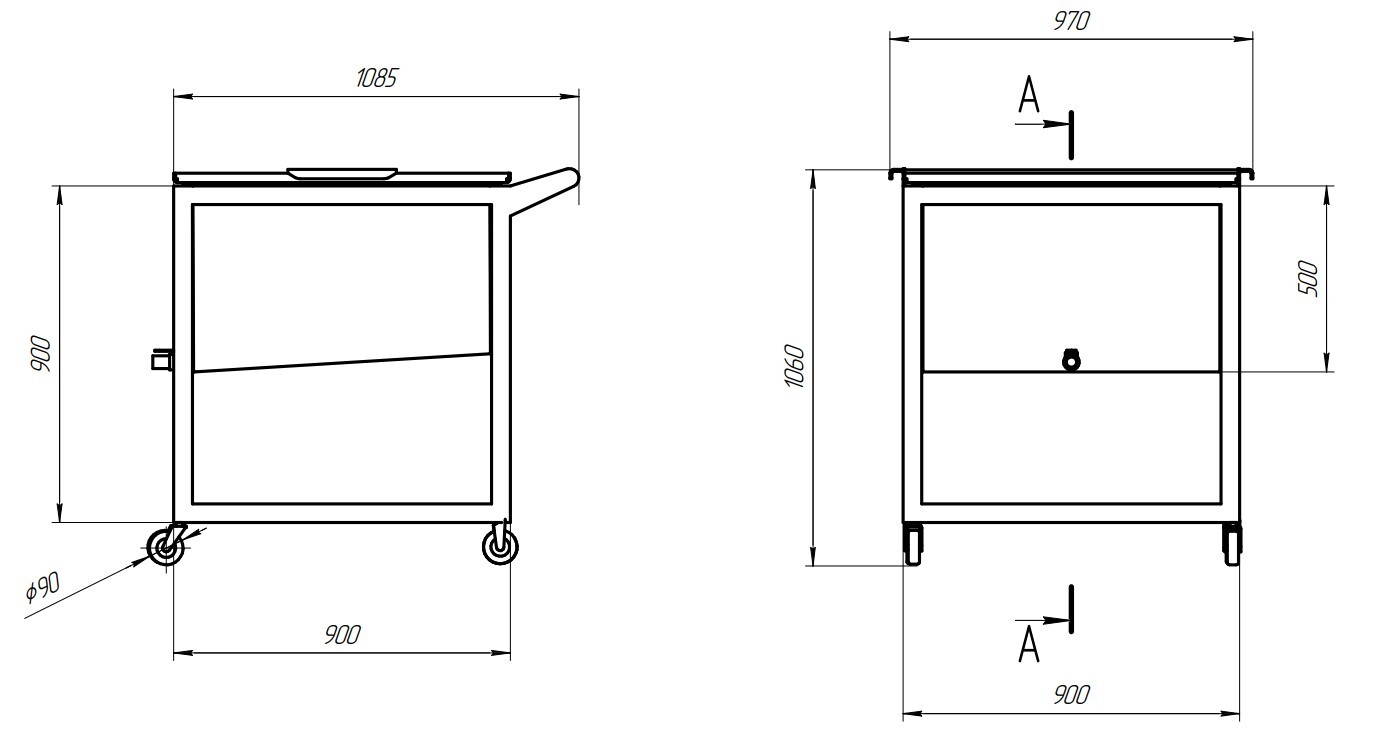

Помывочный стол-тумба со встроенным накопительным баком. Представляет собой тумбу на колесах из нержавеющей стали, на верхней части которой находится раковина с прочной столешницей, на которой производится разборка компонента. Стекающие из компонента жидкости через специальные отверстия в столешнице попадают в раковину и далее в накопительный бак. Столешница съёмная, может быть на петлях; в сливном отверстии раковины установлена решётка-уловитель для исключения падения в бак деталей от компонента. У тумбы имеются металлические ручки, позволяющие перемещать её, а так же шаровый кран в нижней части бака для слива собранных жидкостей. На чертеже ниже представлена стандартная тумба, можем изготовить её в любом размере и с любыми доработками по Вашему желанию.

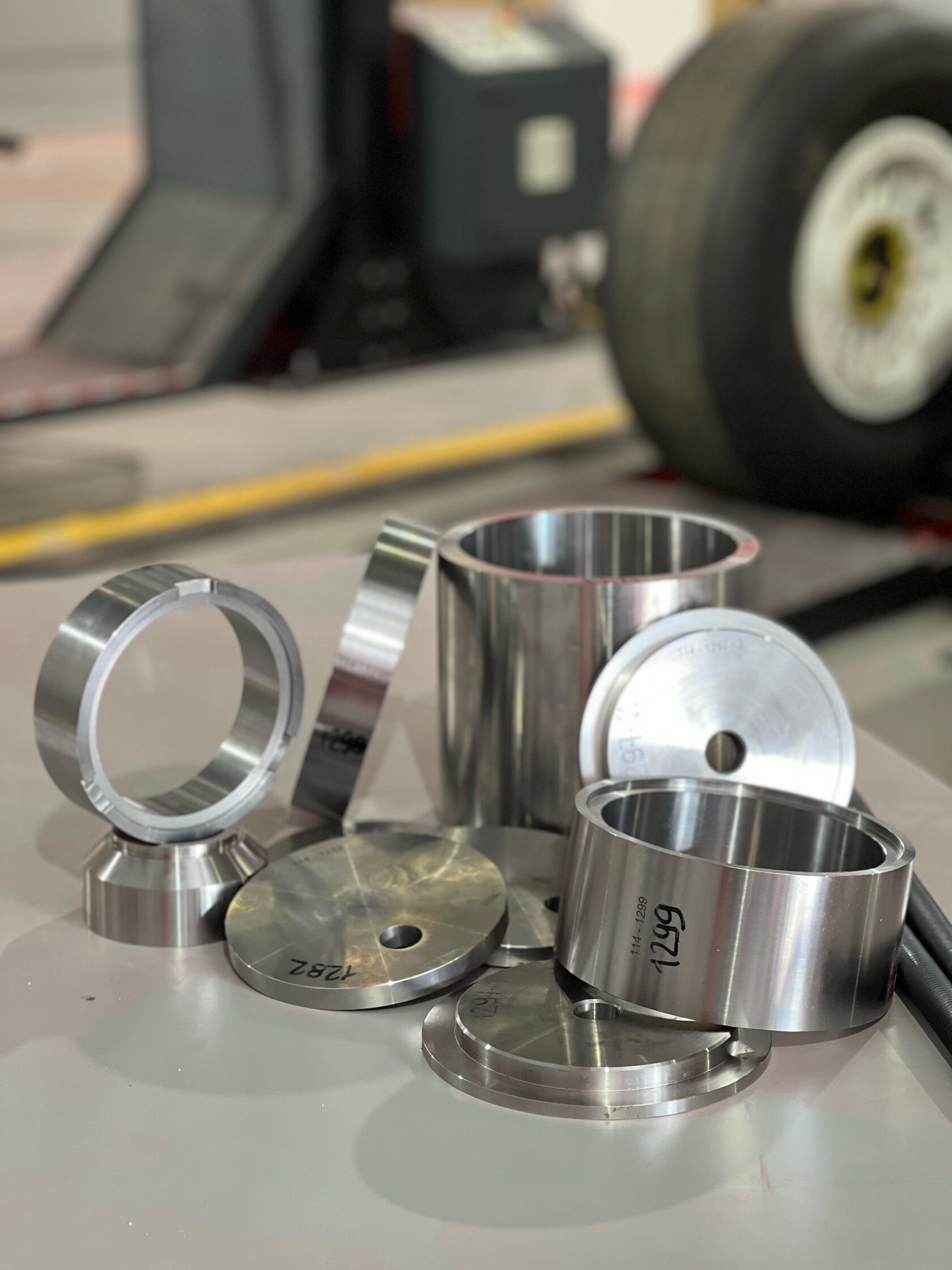

Список оснастки, которую мы можем произвести под заказ:
| П/п | Наименование | Партийный номер |
| Nlg wheel A320 p/n 3-1531 Series | ||
| 1. | Tool to Check Overinflation Plug for Leaks | 114-263 |
| 2. | Tire and Wheel Assembly Tool | 114-264 |
| 3. | Retaining Ring Pliers | 1100 |
| 4. | Wheel Half Support Tool (Bearing Cup Removal) | 114-265 |
| 5. | Wheel Half Support Tool (Bearing Cup Installation) | 114-1424 |
| 6. | Bearing Cup Removal and Installation Tools | 114-266 and 114-268 |
| 7. | Grease Seal Inspection Tool | 114-1230 |
| 8. | Clamp Knob and Bolt Retainer | Refer to the |
| Mlg wheel A320 p/n 3-1530 series | ||
| 9. | Tool for a leak Test of Thermal Relief Plugs and for the Overinflation Plug,Tool | 114-1274 |
| 10. | Tool for Assembly of the Wheel and Tire,Tool | 114-1275 |
| 11. | Tool That Holds the Inner or Outer Wheel Half for Removal or Installation of the Bearing Cup | 114-1276 |
| 12. | 114-1277 | |
| 13. | 114-1278 | |
| 14. | 114-1279 | |
| 15. | Tool for Bearing Cup Removal and Installation | 114-1280 |
| 16. | 114-1281 | |
| 17. | 114-1282 | |
| 18. | 114-1283 | |
| NLG wheel A330 p/n 3-1596 | ||
| 19. | Tool for a Leak Test of the Overinflation Plug, Tool | 114-1077 |
| 20. | Tool for Assembly of the Wheel and Tire, Tool | 114-1078 |
| 21. | Tool for Bearing Cups Removal from the Inner and Outer Wheel Halves Tool | 114-1079 |
| 22. | Tool for Bearing Cups Installation into the Inner and Outer Wheel Halves Tool | 114-1080 |
| 23. |
|
|
| MLG Wheel A330 p/n 3-1546 | ||
| 24. | Tool for a Leak Test of Thermal Relief Plugs and the Overinflation Plug, Tool | 114-349 |
| 25. | Tool for Assembly of the Wheel and Tire, Tool | AC21885000 |
| 26. | Tool for Assembly of the Wheel and Tire, Tool | 114-1074 |
| 27. | Tool for Removal or Installation of the Inner and Outer Wheel Half Bearing Cups | AC21886010 |
| 28. | AC21888000 | |
| 29. | Tool That Holds the Outer Wheel Half for Removal or Installation of a Bearing Cup and the Inner Wheel Half for Installation of a Bearing Cup, Tool | 114-1075 |
| 30. | Tool That Holds the Inner Wheel Half for Removal of the Bearing Cup, Tool | 114-1076 |
| 31. | Tool for Removal or Installation of Bearing Cups in Wheel halves | 114-1086 |
| 32. | 114-1087 | |
| 33. | 114-1088 | |
| NLG Wheel B737 p/n 3-1559 | ||
| 34. | Tool for a Leak Test of the Overinflation Plug, Tool | 114-263 |
| 35. | Tool for Assembly of the Wheel and Tire, Tool | 114-375 |
| 36. | Tool That Holds the Outer Wheel Half for Removal or Installation of the Bearing Cup, Tool | 114-376 |
| 37. | Tool That Holds the Inner Wheel Half for Removal or Installation of the Bearing Cup, Tool | 114-377 |
| 38. | Outer Bearing Cup Removal Plate | 114-378 |
| 39. | Outer Bearing CupInstallation Plate | 114-379 |
| 40. | Inner Bearing CupRemoval Plate- | 114-380 |
| 41. | Inner Bearing CupInstallation Plate | 114-381 |
| MLG Wheel B737 p/n 3-1674 | ||
| 42. | Tool for a leak test of thermal relief plugs and the overinflation plug | 114-1360 |
| 43. | Drive shaft tool to remove bearing cups | 114-428 |
| 44. | Tool that holds the outer wheel half for removal or installation of bearing cups | 114-1361 |
| 45. | Tool for removal of a bearing cup (outer bearing bore) | 114-1362 |
| 46. | Tool for installation of a bearing cup (outer bearing bore) | 114-1363 |
| 47. | Tool for removal of a bearing cup (inner bearing bore) | 114-1364 |
| 48. | Tool for installation of a bearing cup (inner bearing bore) | 114-1365 |
| 49. | Tool for removal and installation of a bushing into a torque bar hole | 114-1366 |
| NLG Wheel B777 p/n 3-1619 | ||
| 50. | Tool for removal and installation of a bushing into a torque bar hole | 114-306 |
| 51. | Tool for removal and installation of a bushing into a torque bar hole | 114-1059 |
| 52. | Tool for removal and installation of a bushing into a torque bar hole | 114-1060 |
| 53. | Tool for removal and installation of a bushing into a torque bar hole | 114-1061 |
| 54. | Tool for removal and installation of a bushing into a torque bar hole | 114-1062 |
| 55. | Tool for removal and installation of a bushing into a torque bar hole | 114-1063 |
| 56. | Tool for removal and installation of a bushing into a torque bar hole | 114-1099 |
| 57. | Tool for removal and installation of a bushing into a torque bar hole | 114-1100 |
| MLG Wheel B777 p/n 3-1666 | ||
| 58. | Tool for a leak test of thermal relief plugs and for the overinflation plug | 114-1098 |
| 59. | Tool for assembly of the wheel and the tire | 114-1382 |
| 60. | Tool that holds the inner wheel half for removal and installation of the bearing cup | 114-1394 |
| 61. | Tool that holds the outer wheel half for removal and installation of the bearing cup | 114-1045 |
| 62. | Tool for bearing cup removal from an inner wheel half | 114-333 |
| 63. | Tool for bearing cup removal from an outer wheel half | 114-334 |
| 64. | Tool for bearing cup installation in an inner wheel half | 114-335 |
| 65. | Tool for bearing cup installation in an outer wheel half | 114-336 |
| 66. | Tool that inspects lip height of seals | 114-1425 |
| 67. | Tool for torque bar bushing installation in a torque bar hole | 114-1392 |
| 68. | Tool for torque bar bushing removal from a torque bar hole | 114-1252 |
| MLG Wheel RRG 100 p/n 3-1661 Series | ||
| 69. | Tool for a leak test of the thermal relief plug assemblies and the overinflation plug | 114-1146 |
| 70. | Adapter for a leak test of push-in type thermal relief plug assemblies | 114-1145 |
| 71. | Tool for assembly of the tire and the wheel | 114-1297 |
| 72. | Tool for removal or installation of the retaining rings | 1100 |
| 73. | Hub support for the outer wheel half bearing cup removal | 114-1298 |
| 74. | Hub support for the inner wheel half bearing cup removal | 114-1299 |
| 75. | Hub support for the outer wheel half bearing cup installation | 114-1300 |
| 76. | Hub support for the inner wheel half bearing cup installation | 114-1301 |
| 77. | Inner wheel half bearing cup removal plate | 114-1302 |
| 78. | Outer wheel half bearing cup removal plate | 114-1303 |
| 79. | Outer wheel half bearing cup installation plate | 114-1304 |
| 80. | Inner wheel half bearing cup installation plate | 114-1305 |
| 81. | Grease Seal Assembly Inspection Tools | 114-1306 |
| NLG Wheel RRG 100 p/n 3-1650 Series | ||
| 82. | Wheel and Tire Assembly Tool | 114-1286 |
| 83. | -Hub Support for the Outer Wheel Half Bearing Cup Removal | 114-1287 |
| 84. | Hub Support for the Inner and Outer Wheel Half Bearing Cup Installation | 114-1288 |
| 85. | -Hub Support for the Inner Wheel Half Bearing Cup Removal | 114-1289 |
| 86. | Inner and Outer Bearing Cup Removal Plate | 114-1290 |
| 87. | -Inner and Outer Bearing Cup Installation Plate | 114-1291 |
| 88. | Seal Assembly Inspection Tools | 114-1292 |
| NLG Wheel A350 p/n 3-1659 | ||
| 89. | Tool for a leak test of the overinflation plug | 114-306 |
| 90. | Tool for assembly of the wheel and the tire | 114-1078 |
| 91. | Tool that holds the outer and inner wheel halves for removal of the bearing cup | 114-1079 |
| 92. | Tool that holds the outer and inner wheel halves for installation of the bearing cup | 114-1080 |
| 93. | Tool for removal of the bearing cup from an outer wheel half | 114-1089 |
| 94. | Tool for installation of the bearing cup from an outer wheel half | 114-1090 |
| 95. | Tool for removal of the bearing cup from an inner wheel half | 114-1091 |
| 96. | Tool for installation of the bearing cup from an inner wheel half | 114-1092 |
| 97. | Tool that inspects lip height of seals | 114-1383 |
| MLG Wheel A 350 p/n 3-1678 | ||
| 98. | Tool for a Leak test of push-in type thermal relief plugs and for the overinflation plug | 114-1233 |
| 99. | Tool for Assembly of the wheel and tire | 114-1074 |
| 100. | Tool that holds for removal or insttation of the outer wheel half bearing cup and for installation of the inner wheel half bearing cup | 114-1075 |
| 101. | Tool that holds the inner wheel half for removal of the bearing .cup | 114-1439 |
| 102. | Bearing cup removal plate for inner and outer wheel halves | 114-1086 |
| 103. | Bearing cup installation plate for inner wheel half | 114-1087 |
| 104. | Bearing cup installation plate for outer wheel half | 114-1088 |
| 105. | Tool for installation of a repair bushing into a torque bar hole | 114-1440 |
| 106. | Tools for removal of a bushing from a torque bar hole | 114-1252 |
| BRS A320 p/n 2-1684 | ||
| 107. | Adjuster assembly \/disassembly tool | 114-291 |
| 108. | Backup ring installation tool | 114-293 |
| 109. | Backup ring sizing tool | 114-1159 |
| 110. | Retaining ring pliers | 114-325 |
| 111. | Piston installation bullet tool | 114-326 |
| 112. | Piston installation guide tool | 114-327 |
| 113. | Adjuster pin installation tool | 114-245 |
| 114. | Radial riveting peen that attaches the back plate pads to the back plate | 114-239 |
| 115. | Radial riveting anvil that attaches the back plate pads to the back plate | 114-241 |
| 116. | High-pressure leak test shims | 114-330 |
| BRS A330 p/n 2-1577 | ||
| 117. | Tool for removal/installation of torque plate bushing assembly | 114-1064 |
| 118. | 114-1065 | |
| 119. | Installation tool | 114-1066 |
| 120. |
Installation tool | 114-1069 114-1070 114-1071 114-1095 |
| 121. | ||
| 122. | ||
| 123. | ||
| 124. | Installation tool | AC21869000 |
| 125. | Support tool(piston housing and adjuster assembly for work on brake placed on workbench) | F26619000 |
| 126. | Compression tool | 114-231 |
| 127. | Adapter | Q47621 |
| 128. | Installation cone | 114-245 |
| 129. | Installation cone | 114-1096 |
| 130. | Spatula | 89901 |
| 131. | Support for piston installation | 114-552 |
| 132. | Installation tool used to guide piston | 114-1097 |
| BRS B777 p/n 2-1693 Series | ||
| 133. | Tool for installation or removal of the retaining ring in an adjuster | 114-231 |
| 134. | Tool that holds the torque plate when the bushing assembly is installed or removed | 114-1101 |
| 135. | Pusher tool for removal and installation of the bushing assembly | 114-299 |
| 136. | Tool that holds the bushing during installation onto the bushing | 114-300 |
| 137. | Tool for installation of lock plates on bolts | 114-1102 |
| 138. | Bullet tool for installation of pistons into adjuster sleeves | 114-1103 |
| 139. | Piston support tool for installation of pistons into adjuster sleeves | 114-1104 |
| 140. | Guide tool for installation of pistons into adjuster sleeves | 114-1105 |
| 141. | Bullet tool for installation of adjuster pins into pistons | 114-305 |
| 142. | Shims for high-pressure leak test | 114-331 |
| BRS RRG 100 2-1711 Series | ||
| 143. | Split Shim | 114-1293 |
| 144. | Spring removal and installation tool | 114-1294 |
| 145. | Bullet tool | 114-951 |
| 146. | Adjuster Sleeve O-ring and Backup ring installation tool | 114-958 |
| 147. | Piston Guide tool | 114-1295 |
| 148. | Sleeve Guide tool | 114-1296 |
| 149. | Sizing tool | 114-1133 |
| 150. | Bleeder tool kit | 114-1248 |
| BRS A350 2-1756 Series | ||
| 151. | Tool for installation or removal of the Retaining Ring tool | 114-231 |
| 152. | Support tool for installation or removal of the Bushings | 114-1418 |
| 153. | Pusher tool for removal and installation of the Bushings | 114-1419 |
| 154. | Support tool for the Torque Plate Bushings | 114-1420 |
| 155. | Piston installation Bullet tool | 114-1103 |
| 156. | Adjuster Pin installation Bullet tool | 114-305 |
| 157. | High-Pressure leak test Shims tool | 114-1486 |
| 158. | Piston installation Guide tool | 114-1421 |
| 159. | Piston installation Support tool | 114-1104 |
| 160. | Loading Mandrel tool for installation of Backup Rings on an Adjuster Sleeve tool | 114-1422 |
| 161. | Pusher tool for installation of backup rings on an adjuster sleeve tool | 114-1069 |
| 162. | Split ring tool for sizing backup ring on adjuster sleeves toolt | 114-1423 |
| 163. | Tool that sizes backup rings on an adjuster sleeve tool | 114-1071 |
CEO@CHRONOTOP.TECH
Московская обл., городской округ Солнечногорск, индустриальный парк Есипово, 17\2
+7 495 568 18 06
E-mail: info@chronotop.tech
